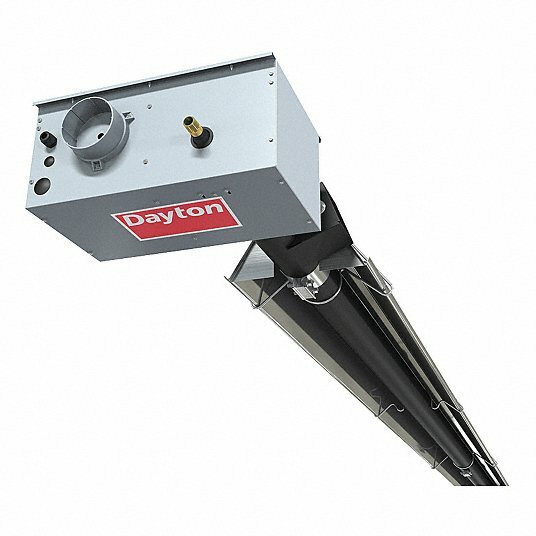

NEW! Dayton NG Infrared Tube Heater 40', 125000 Btu!!

NEW! Dayton NG Infrared Tube Heater 40', 125000 Btu!!

SHIPPING IS IN THE LOWER 48 STATES-SHIPS TRUCK

Usually ships in 7-10 days

DescriptionProduct Type Suspended Infrared Tube Heater, Fuel Type Natural Gas, Heating Capacity Input 125,000 BtuH, Radiant Tube Length 40 ft, Floor Coverage @ Minimum Mounting Height 30 ft x 40 ft, Heating Method Radiant, Overall Height 8 1/2 in, Overall Width 18 1/8 in, Overall Depth 41 ft, Element Type Radiant Pipe, Thermostat Included No, Amperage 4.8 A, Heater Voltage 120 V AC, Heat Output 125,000 BtuH, Ignition Type Hot-Surface, Fuel Consumption 1.2 thm/hr, Frequency 60 Hz, Gas Connection Size 1/2 in
Note: Installation and service must be performed by a licensed contractor and must conform to local codes. In absence of local codes, installation must comply with National Fuel Gas Code ANSI X223.I (also known as NFPA 54) or CGA B149 installation codes.

• Item: Gas Infrared Tube Heater
• Indoor/Outdoor: Indoor, Outdoor
• Gas Type: NG

• G0908722

PRODUCT INFORMATIONDayton #7D845 Specifications

• Mfr #: 7D845

• Item: Gas Infrared Tube Heater
• Indoor/Outdoor: Indoor, Outdoor
• Gas Type: NG
• BtuH: 125,000
• Height: 8-1/2 in
• Width: 18-1/8 in
• Length: 492 in
• Radiant Pipe: 40 ft
• Min. Mounting Height: 15 ft
• Heater Voltage: 120 V AC
• Amps AC: 4.8
• Clearance to Combustibles (In.) Sides 0 Deg.: 20
• Clearance to Combustibles (In.) Top 1-45 Deg.: 10
• Clearance to Combustibles (In.) Front 45 Deg.: 58
• Clearance to Combustibles (In.) Front 1-45 Deg.: 58
• Vent Dia.: 4 in
• Hz: 60
• Clearance to Combustibles (In.) Below 0 Deg.: 76
• Clearance to Combustibles (In.) Behind 1-45 Deg.: 8
• Clearance to Combustibles (In.) Top 45 Deg.: 10
• Clearance to Combustibles (In.) Top 0 Deg.: 6
• Standards: CSA Blue Star Certified
• Includes: Mounting Chains, Stainless Steel Flexible Gas Connector, Gas Shut Off
• Clearance to Combustibles (In.) Behind 45 Deg.: 8
• Manufacturers Warranty Length: 1 yr
• Overall Width: 18 1/8 in
• Overall Height: 8 1/2 in
• Operating Temperature: 480 Degrees F
• Thermostat Included: No
• Element Type: Radiant Pipe
• Heating Capacity Input: 125,000 BtuH
• Heat Output: 125,000 BtuH
• Ignition Type: Hot-Surface
• Floor Coverage @ Minimum Mounting Height: 30 ft x 40 ft
• Gas Connection Size: 1/2 in
• Reflector Material: Aluminum
• Radiant Tube Length: 40 ft
• Heating Method: Radiant
• Product Type: Suspended Infrared Tube Heater
• Radiant Tube Material: Aluminum
• Fuel Type: Natural Gas
• Gas Connection Type: NPT
• Vent Diameter: 4 in
• Amperage: 4.8 A
• Frequency: 60 Hz
• For Use Outdoors: Indoor Only
• Clearance to Combustibles 0 Deg. - Top x Below x Sides: 6 in x 76 in x 20 in x 20 in
• Overall Depth: 41 ft
• Clearance to Combustibles 45 Deg. - Top x Below x Sides: 10 in x 76 in x 58 in x 8 in
• Fuel Consumption: 1.2 thm/hr
• Country of Origin (subject to change): United States
